Understanding Sampling and Aliasing in Digital Signal Processing (DSP) with MATLAB Examples

Digital Signal Processing (DSP) is a fundamental field in engineering that allows computers and embedded systems to analyze, manipulate, and store real-world analog signals in digital form. To work with digital signals effectively, understanding sampling and aliasing is essential.

This guide provides a detailed explanation of these concepts, practical MATLAB examples, and methods to prevent common signal distortions.


What is Sampling?

Sampling is the process of measuring the amplitude of a continuous analog signal at regular time intervals. This converts the continuous-time signal (x(t)) into a discrete-time signal (x[n]):

x[n] = x(nTs)

Where:

  • Ts = sampling period
  • fs = 1/Ts = sampling frequency
  • n = sample index

Sampling allows digital devices like Analog-to-Digital Converters (ADC), data acquisition systems, and digital measurement instruments to represent analog signals numerically.


The Nyquist-Shannon Sampling Theorem

The Nyquist-Shannon Sampling Theorem is a cornerstone of DSP. It states:

A signal must be sampled at least twice the maximum frequency component in order to be accurately reconstructed.

Mathematically:

fs >= 2 * fmax
  • fS= sampling frequency
  • fmax = maximum signal frequency

The Nyquist Rate (2*fmax) defines the minimum sampling frequency required. Sampling below this rate can result in aliasing, a form of distortion that makes high-frequency components appear as lower frequencies.


What is Aliasing?

Aliasing occurs when a signal is sampled below its Nyquist Rate. In this scenario:

  • High-frequency components fold back into the lower frequency range.
  • The reconstructed digital signal is distorted.
  • Some information from the original analog signal is permanently lost.

Aliasing is particularly critical in:

  • Audio processing – where distorted samples reduce sound quality
  • Wireless communications – where overlapping frequencies can cause errors
  • Image and video processing – leading to moiré patterns or visual artifacts
  • Biomedical signal monitoring – misrepresenting vital data from ECG or EEG signals

Methods to prevent aliasing:

  1. Increase the Sampling Rate – always meet or exceed 2*fmax.
  2. Anti-Aliasing Filters – low-pass filters remove high-frequency components before sampling.
  3. Oversampling – sampling at a much higher rate than Nyquist reduces quantization noise and simplifies filtering.

MATLAB Examples

1. Sampling a Sine Wave

clc; clear; close all;

% Continuous signal
f = 5;                % signal frequency (Hz)
t = 0:0.001:1;        % time vector
x = sin(2*pi*f*t);    % continuous signal

% Sampling
fs = 20;              % sampling frequency
ts = 0:1/fs:1;
xs = sin(2*pi*f*ts);  % sampled signal

% Plot
figure;
plot(t,x,'b','LineWidth',1.5)
hold on
stem(ts,xs,'r','filled')
title('Sampling of a Sine Wave')
xlabel('Time (s)')
ylabel('Amplitude')
legend('Continuous Signal','Sampled Signal')
grid on;

Explanation: This example shows a 5 Hz sine wave sampled at 20 Hz, which meets the Nyquist criterion. The sampled signal aligns accurately with the continuous waveform.


2. Aliasing Demonstration

clc; clear; close all;

% Signal parameters
f = 10;                % signal frequency
fs = 12;               % sampling frequency below Nyquist

t = 0:0.001:1;
ts = 0:1/fs:1;

x = sin(2*pi*f*t);
xs = sin(2*pi*f*ts);

% Plot
figure;
plot(t,x,'b','LineWidth',1.5)
hold on
stem(ts,xs,'r','filled')
title('Aliasing Demonstration')
xlabel('Time (s)')
ylabel('Amplitude')
legend('Original Signal','Sampled Signal')
grid on;

Explanation: A 10 Hz signal sampled at 12 Hz (less than Nyquist rate of 20 Hz) exhibits aliasing. The sampled points no longer represent the true waveform.


3. Oversampling a Signal

clc; clear; close all;

f = 5;
t = 0:0.001:1;
x = sin(2*pi*f*t);

fs = 100;                 % significantly higher than Nyquist
ts = 0:1/fs:1;
xs = sin(2*pi*f*ts);

figure;
plot(t,x,'b','LineWidth',1.5)
hold on
stem(ts,xs,'r','filled')
title('Oversampling of a Sine Wave')
xlabel('Time (s)')
ylabel('Amplitude')
legend('Continuous Signal','Oversampled Signal')
grid on;

Explanation: Sampling well above the Nyquist rate produces a very accurate digital representation and reduces quantization noise.


4. Anti-Aliasing Filter Example

clc; clear; close all;

f1 = 5; f2 = 25;
t = 0:0.001:1;
x = sin(2*pi*f1*t) + sin(2*pi*f2*t);

fs = 20;
ts = 0:1/fs:1;

fc = fs/2;
[b,a] = butter(5, fc/(fs*0.5));
x_filtered = filter(b,a,x);

xs_original = x(1:round(1/ts(2)):end);
xs_filtered = x_filtered(1:round(1/ts(2)):end);

figure;
subplot(2,1,1)
stem(ts, xs_original,'r','filled')
title('Aliased Signal Without Filter')
xlabel('Time (s)'); ylabel('Amplitude'); grid on;

subplot(2,1,2)
stem(ts, xs_filtered,'b','filled')
title('Signal Sampled After Anti-Aliasing Filter')
xlabel('Time (s)'); ylabel('Amplitude'); grid on;

Explanation: The high-frequency component (25 Hz) is removed using a low-pass filter before sampling. This prevents aliasing and preserves signal integrity.


5. Frequency Domain Visualization (FFT)

clc; clear; close all;

f = 12;
fs = 20;
t = 0:0.001:1;
x = sin(2*pi*f*t);
xs = sin(2*pi*f*(0:1/fs:1));

N = length(xs);
Xf = fft(xs);
f_axis = (0:N-1)*(fs/N);

figure;
stem(f_axis, abs(Xf))
title('Frequency Spectrum of Sampled Signal')
xlabel('Frequency (Hz)')
ylabel('Magnitude')
grid on;

Explanation: The FFT shows how aliasing introduces incorrect frequency components when the sampling frequency is below Nyquist.


Practical Applications

  • Digital audio systems – CDs, streaming audio
  • Wireless communications – Wi-Fi, 4G/5G
  • Radar and sonar – detecting moving objects
  • Medical monitoring – ECG, EEG, MRI signal sampling
  • Image and video acquisition – cameras, CCTV systems

Conclusion

  • Sampling converts analog signals into digital sequences for processing.
  • Aliasing occurs when the sampling rate is too low, causing distortion and loss of information.
  • Using the Nyquist rate, anti-aliasing filters, and oversampling ensures accurate digital representation.
  • MATLAB simulations provide a practical way to visualize these DSP concepts and experiment with sampling strategies.

By understanding and applying these principles, engineers can design systems that accurately capture and process real-world signals in the digital domain.

5 1 vote
Article Rating
Subscribe
Notify of
16 Comments
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
Ronald Florendo jr.
2 months ago

hello

Lyka Barruga
2 months ago

Done sirrrrr, diko sure if ganito ba ang subplot sa matlab

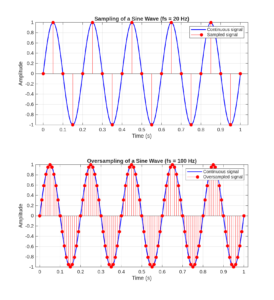

IMG_0464
Kenshin Maraggun
2 months ago

Done

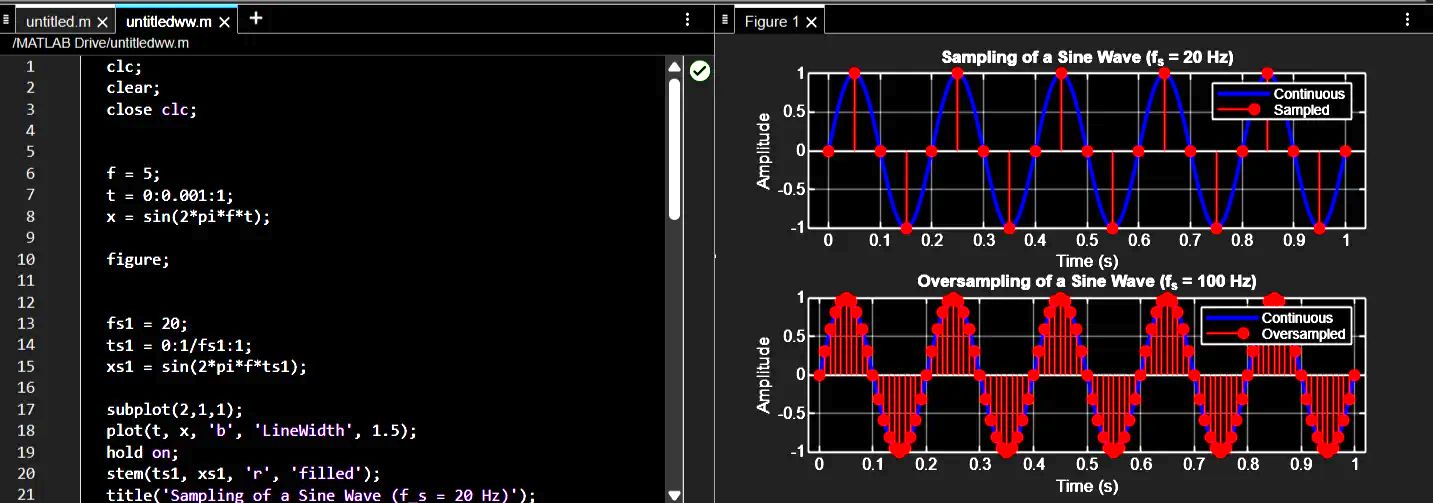

1000007596
Nico Lim
2 months ago

Done

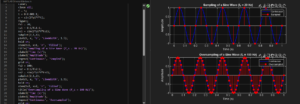

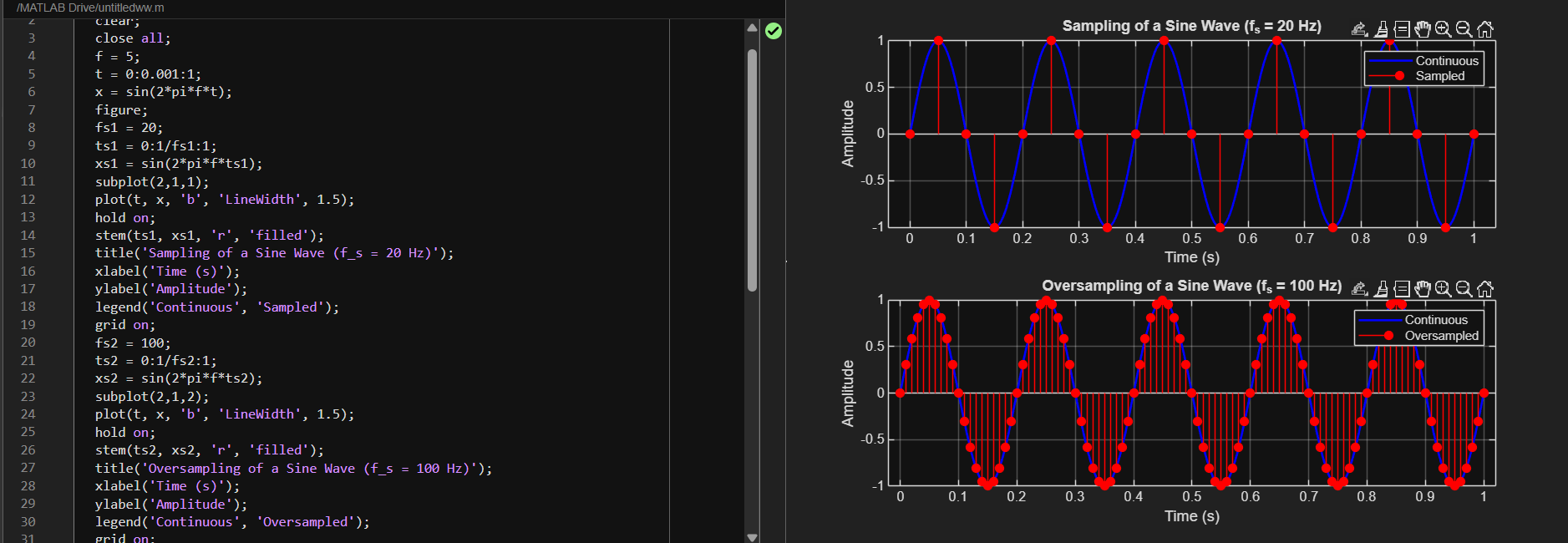

MATLAB-03-13-2026_05_31_PM
Psalm Perez
2 months ago

Done

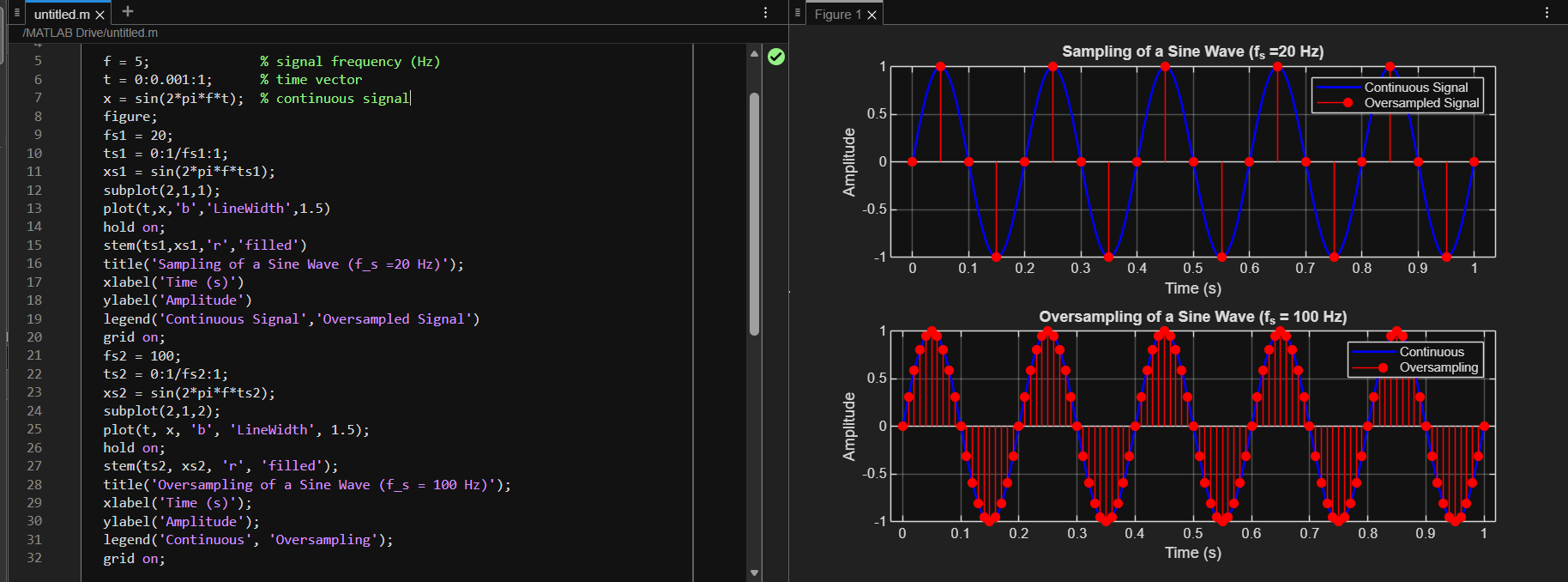

Screenshot-2026-03-13-173231
renz santillan
2 months ago

eto po yung akin sir

att.r-Kq0IgVZeHOsC2IKvRzguOEO46E2L-yj0bQRJd-FMQ
Gemini Almoite
2 months ago

DONE!

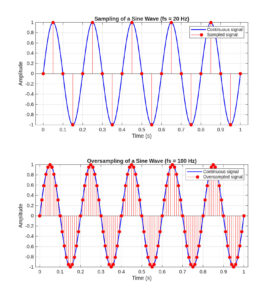

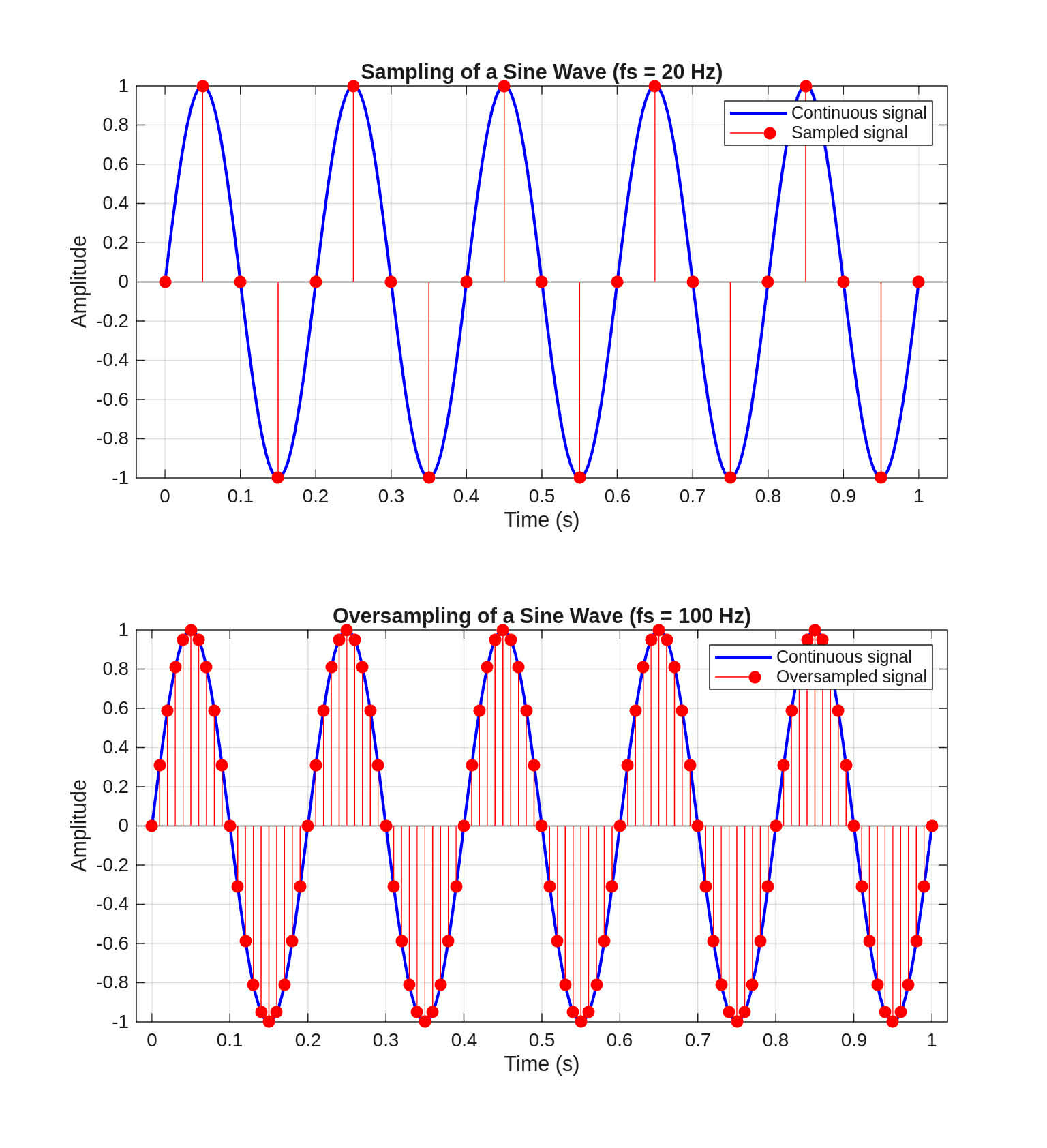

5ec7a93b-3678-416e-826e-6e2528b08afc
Nimrod Reuel Taloza
2 months ago

done

Screenshot-2026-03-13-180439
Lester Datuin
2 months ago

hello, sir hihihi

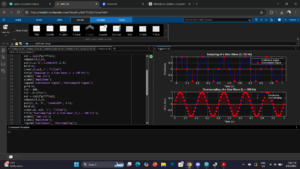

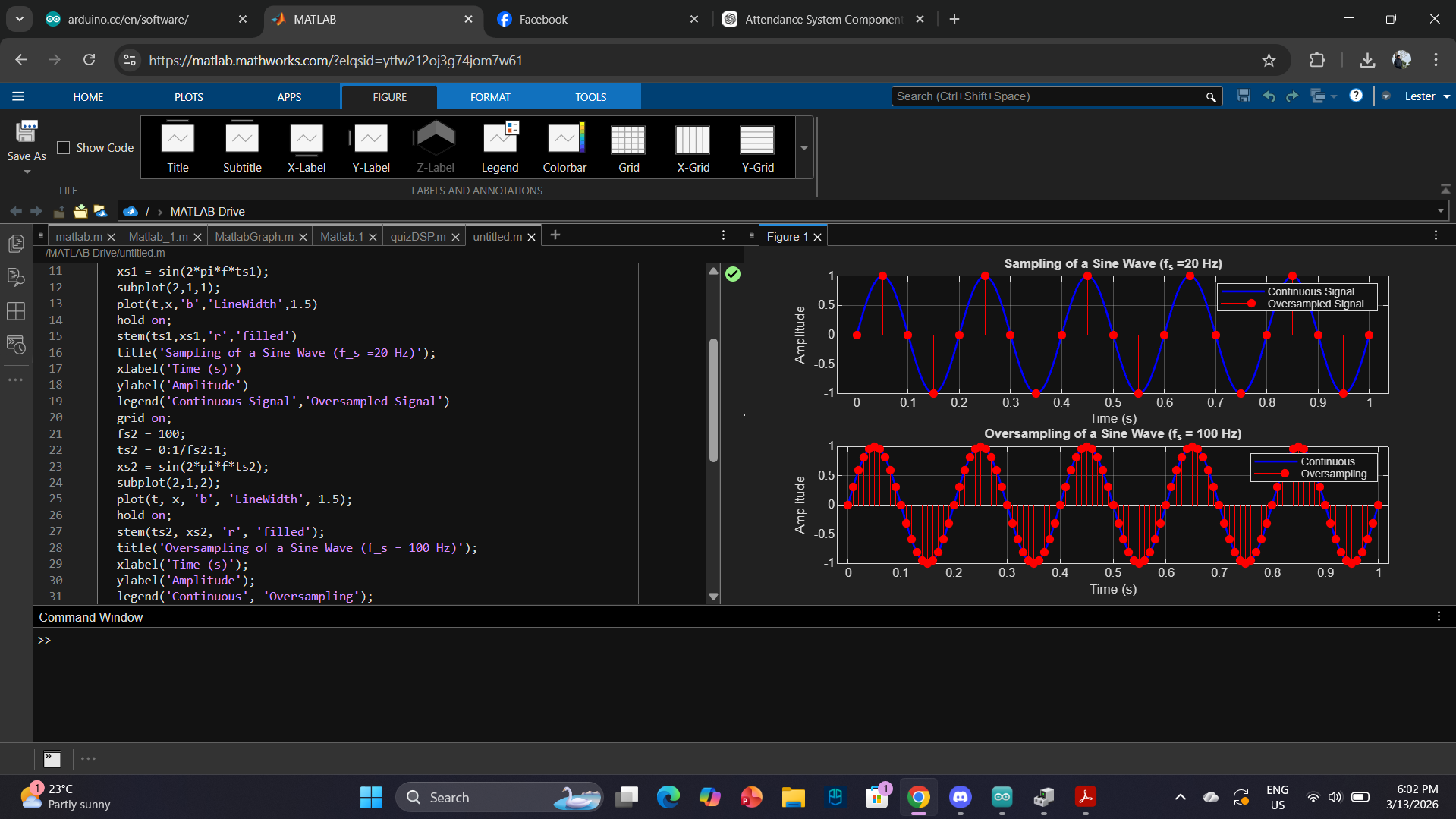

dsp
Darlene Joyce Taguibao
2 months ago

Done sir

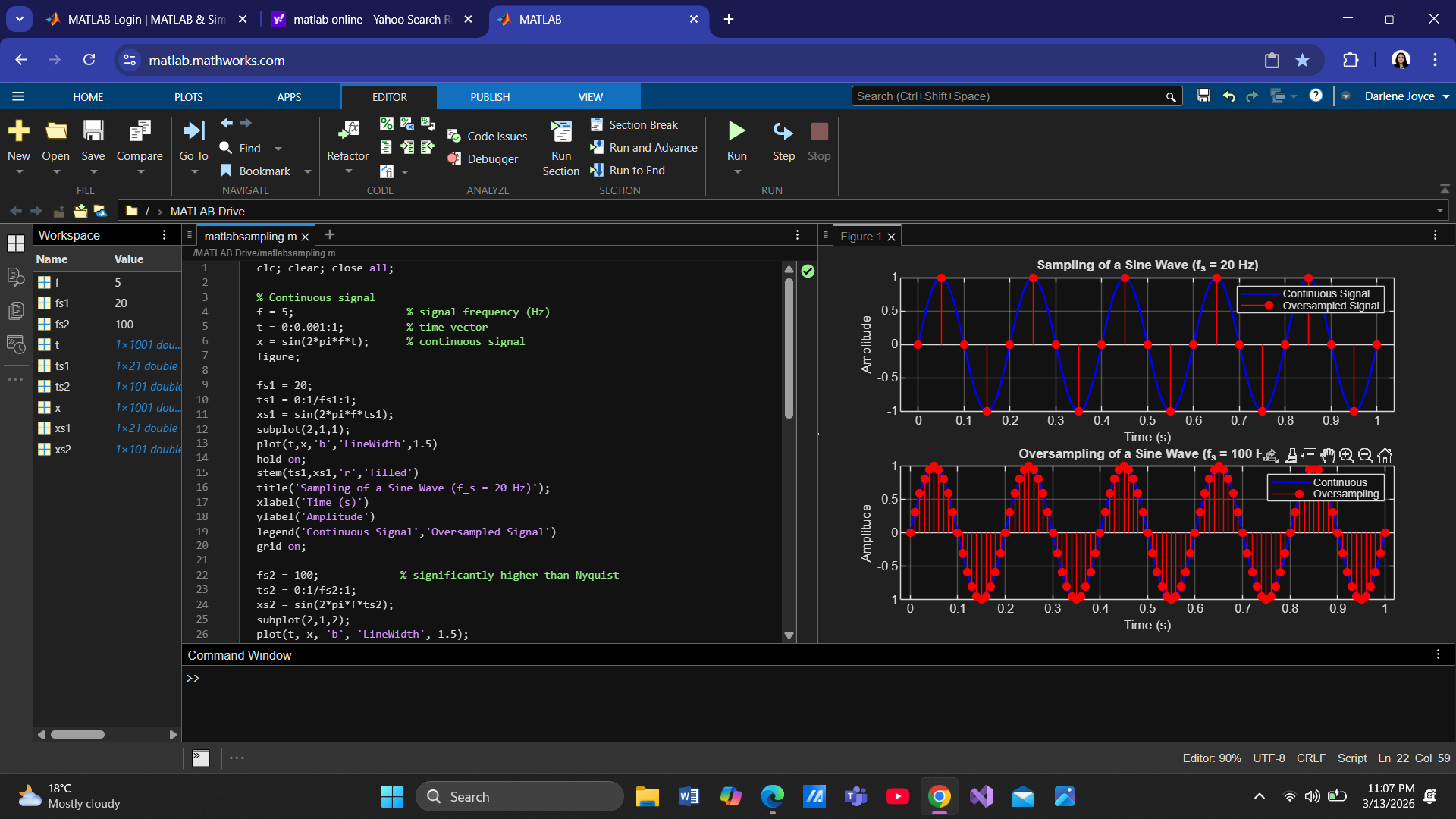

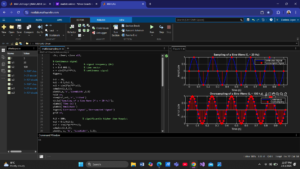

Screenshot-64
Edmar CARAANG
2 months ago

Done

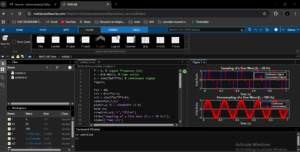

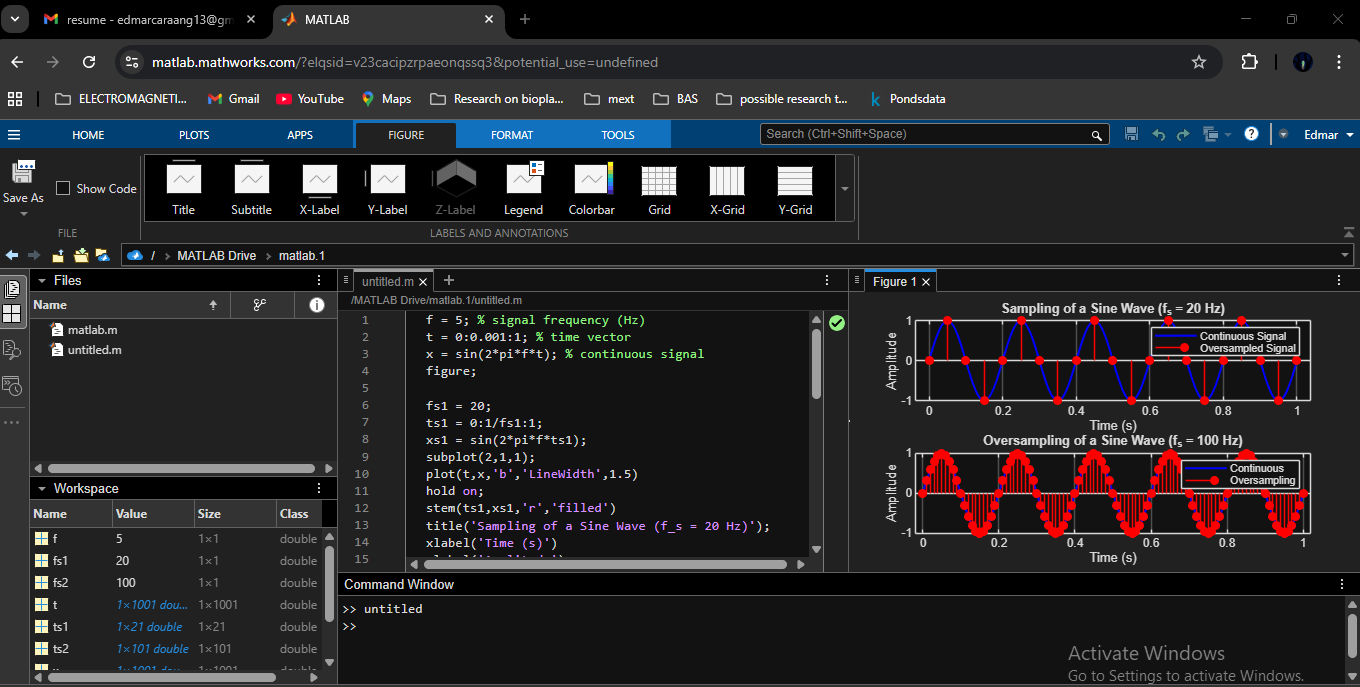

inbound6149421023795493261
Carl Aiscee Daquioag
2 months ago

done po sir

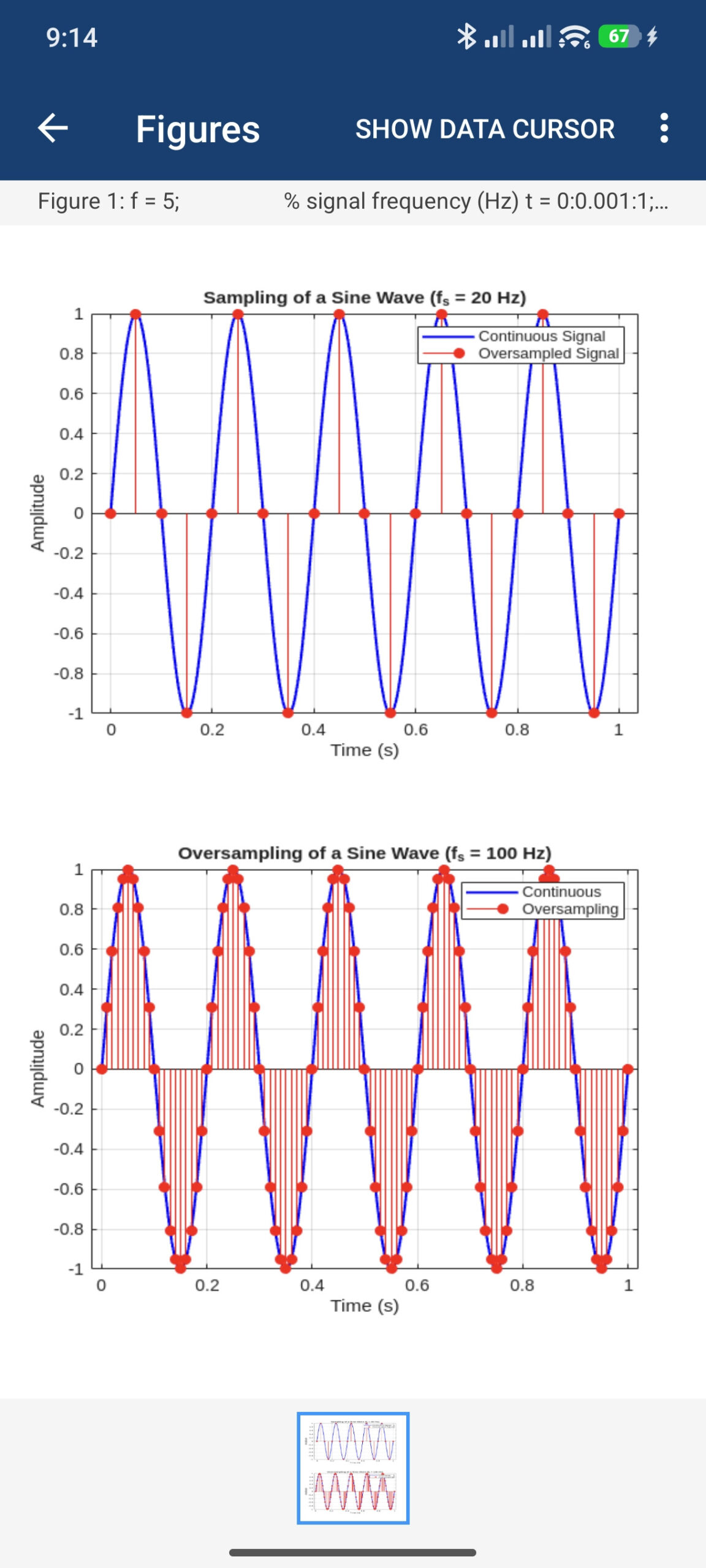

7684
Charlyn Mae Padre
2 months ago

done

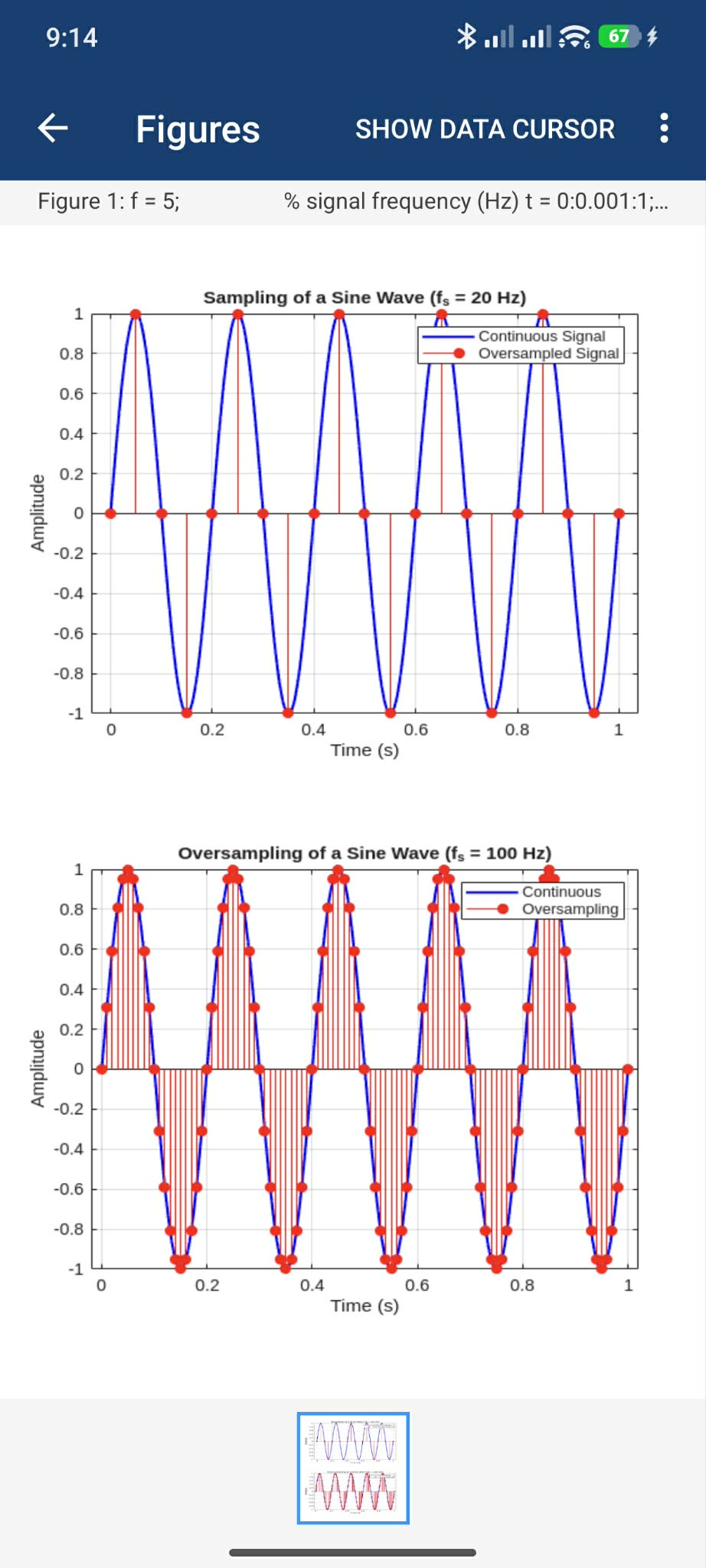

inbound4318845930920547364
Ronald Florendo jr.
2 months ago

done po sir

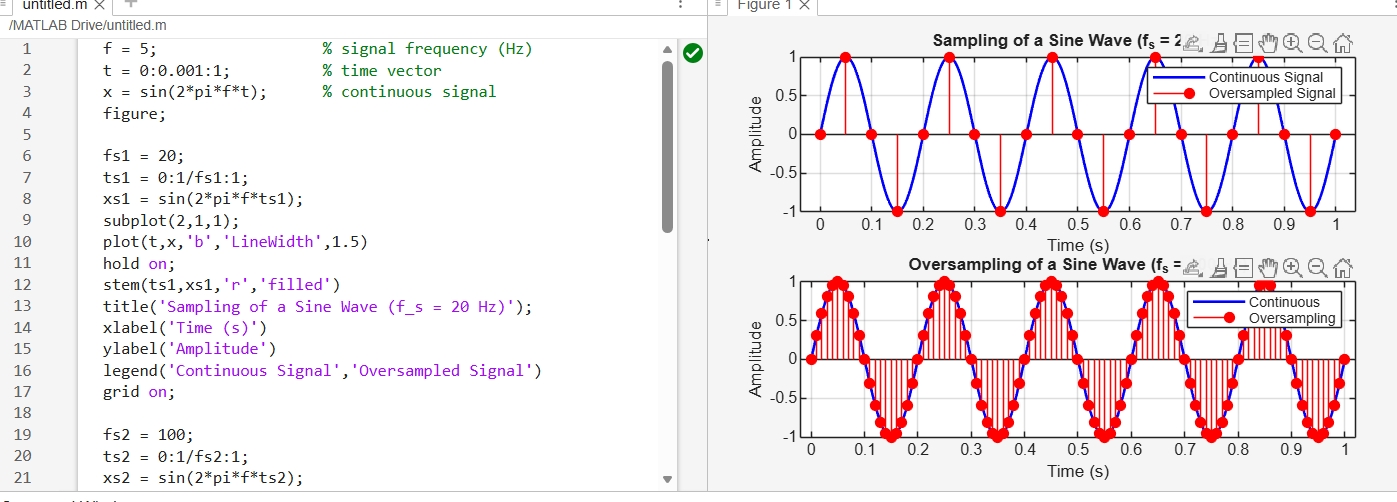

Screenshot_15-3-2026_223658_matlab.mathworks.com
John Andrei Irorita
2 months ago

DONE SIR

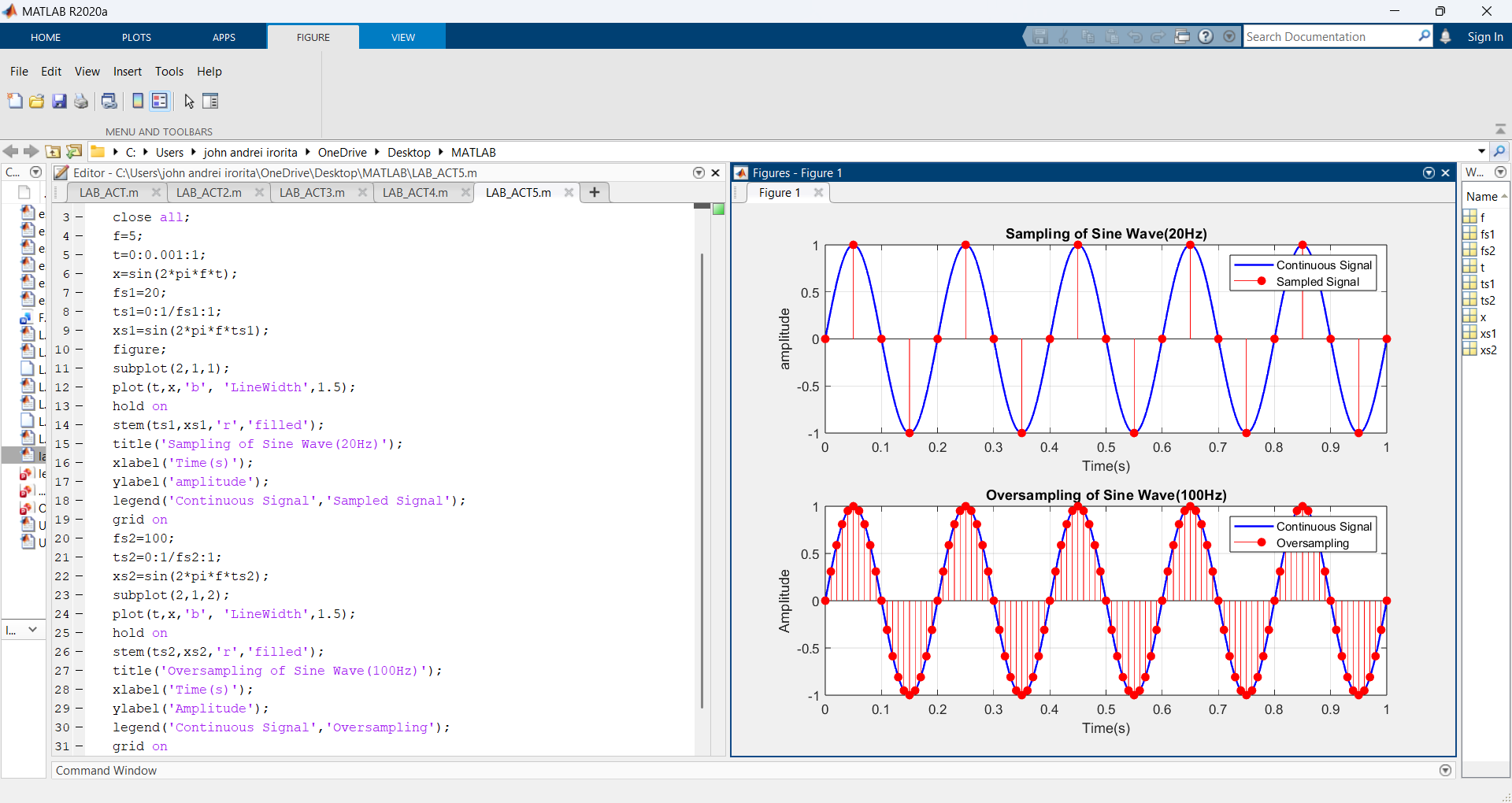

inbound6626061530540605670
Agra
2 months ago

Done

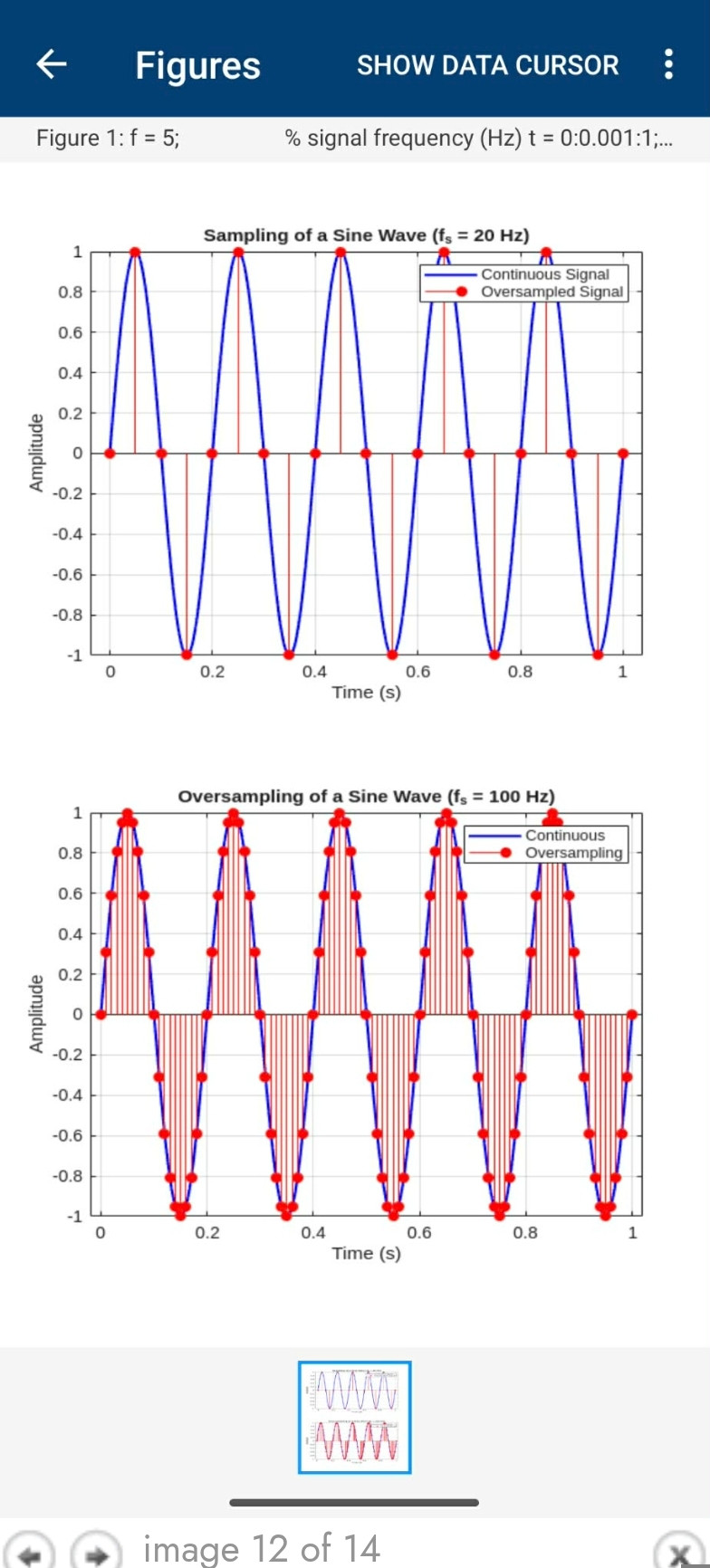

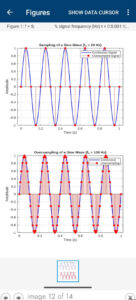

1000010302
